Kiggly Blue Wire Mod

DSM auto wiring for full manual control and full line pressure shifts. Gear selection is controlled entirely by lever position and the 4th gear switch is only active with the lever in 3rd gear position. This works great with a ratchet-action shift lever.

Early Wiring(1990-1992)

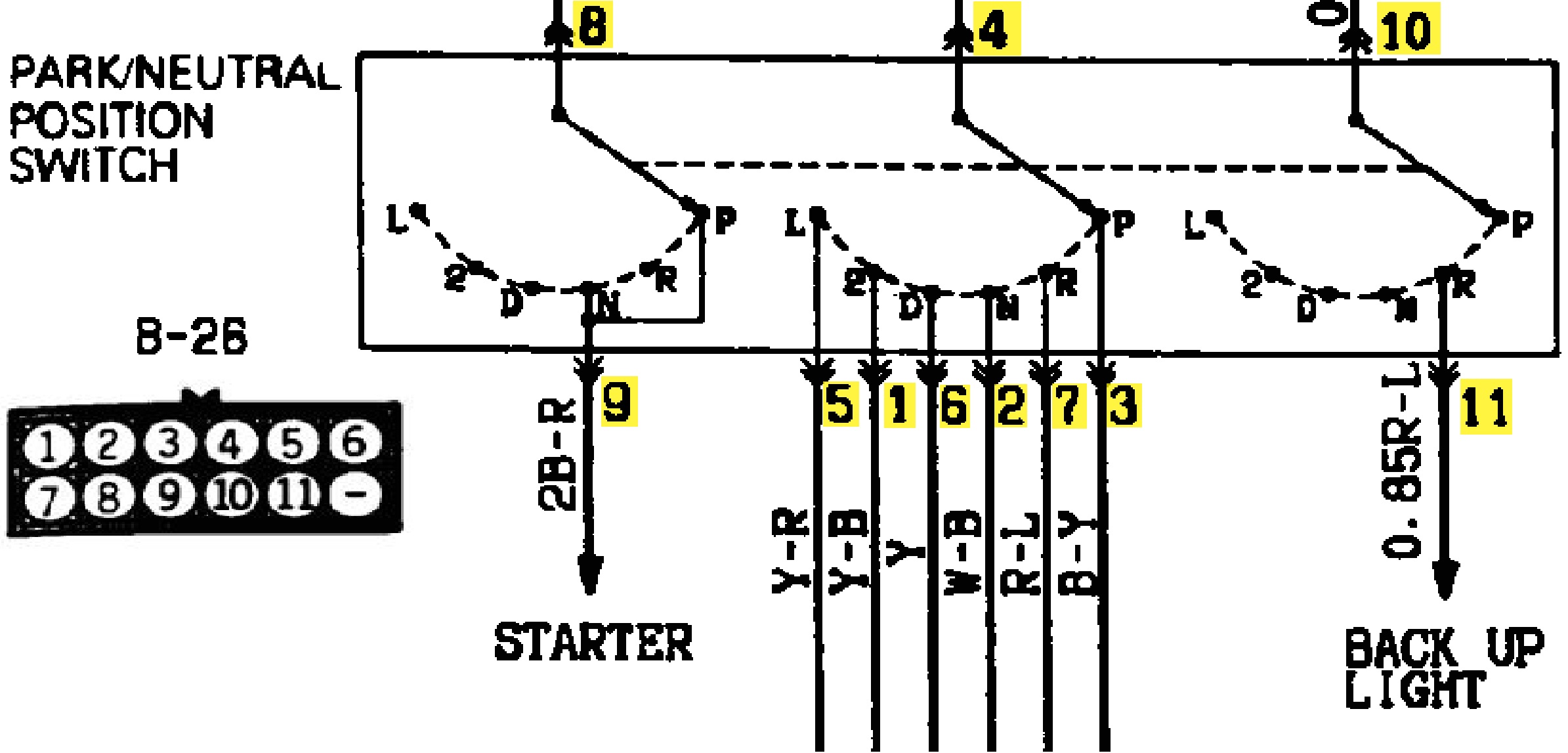

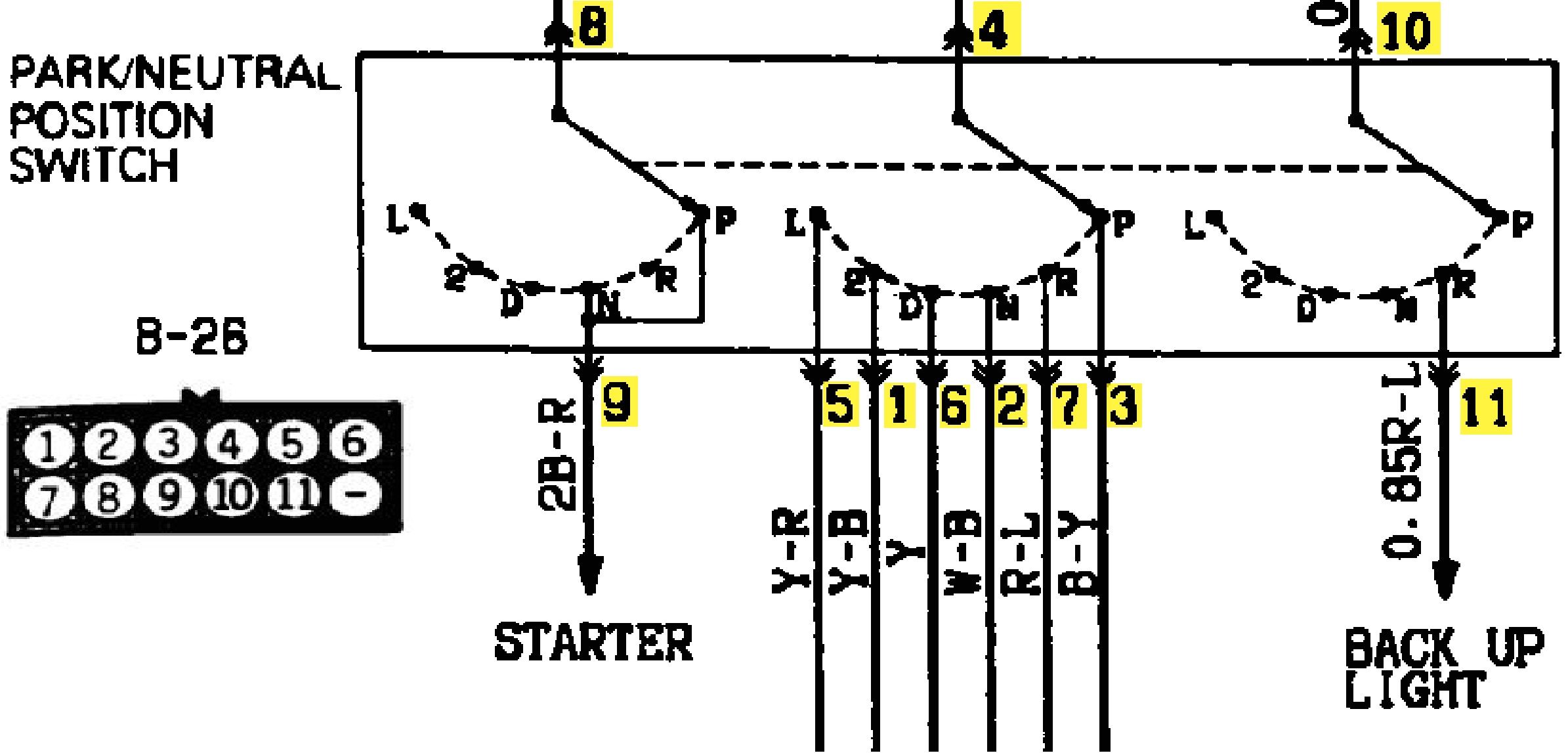

Here are the wires needed to setup a ratchet shifter. Pins 2, 3, and 7 are completely unused here. Pins 8 and 9 are for Park/Neutral safety switch when starting. You can choose to not use these at your own risk but the car will start in any shifter position. Pins 10 and 11 are for reverse light operation. There is a blue wire in the Solenoid harness. This wire is completely unused and is not to confused with the blue wire from the shift selector that gets a Switched 12v source.


Early Shift Selector Harness
Wire Color What it goes to
Blue 12v Positive from the ignition switch(Pin 4)
Yellow w/ Red Stripe 1st Gear Position(Pin 5)
Yellow w/ Black Stripe 2nd Gear Position(Pin 1)
Yellow 3rd Gear Position(Pin 6)
Black w/ White Stripe Neutral Safety switch so it only starts in P and N(Pins 8 & 9)


Solenoid Harness
Wire Color What it goes to
Orange SCSV Solenoid A(Pin 3)
Yellow SCSV Solenoid B(Pin 4)

w4a33.com_images_bluewiremodearly.jpg1)

Late Wiring(1993-1998)

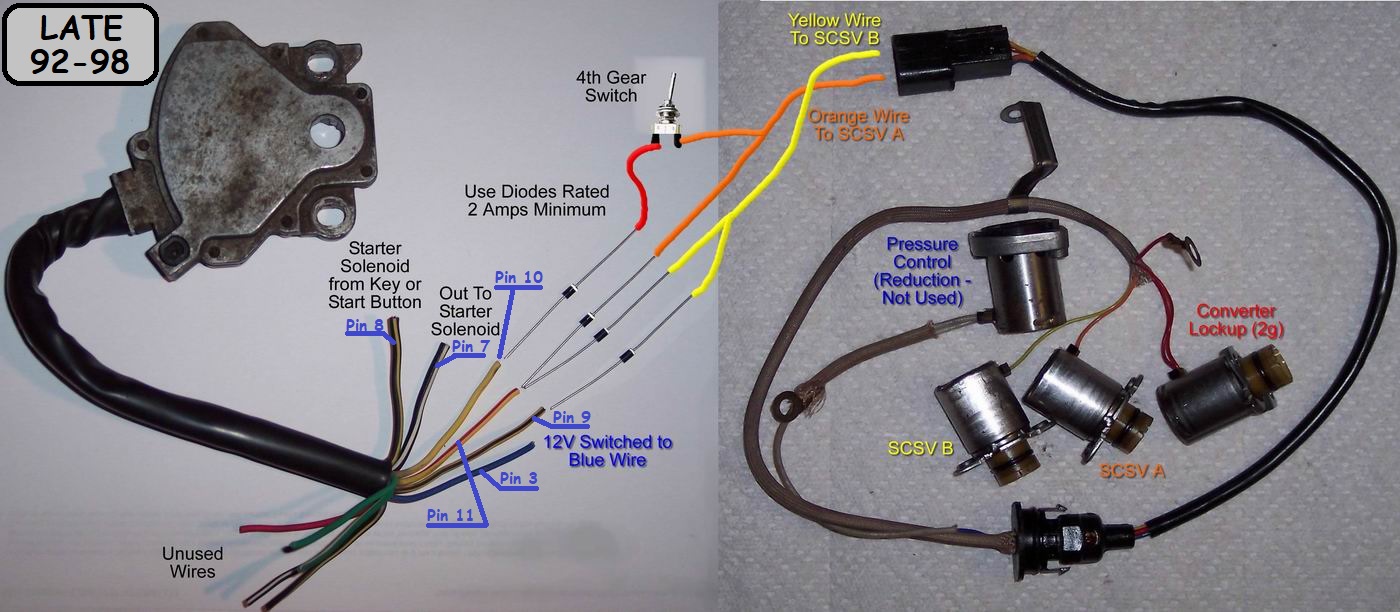

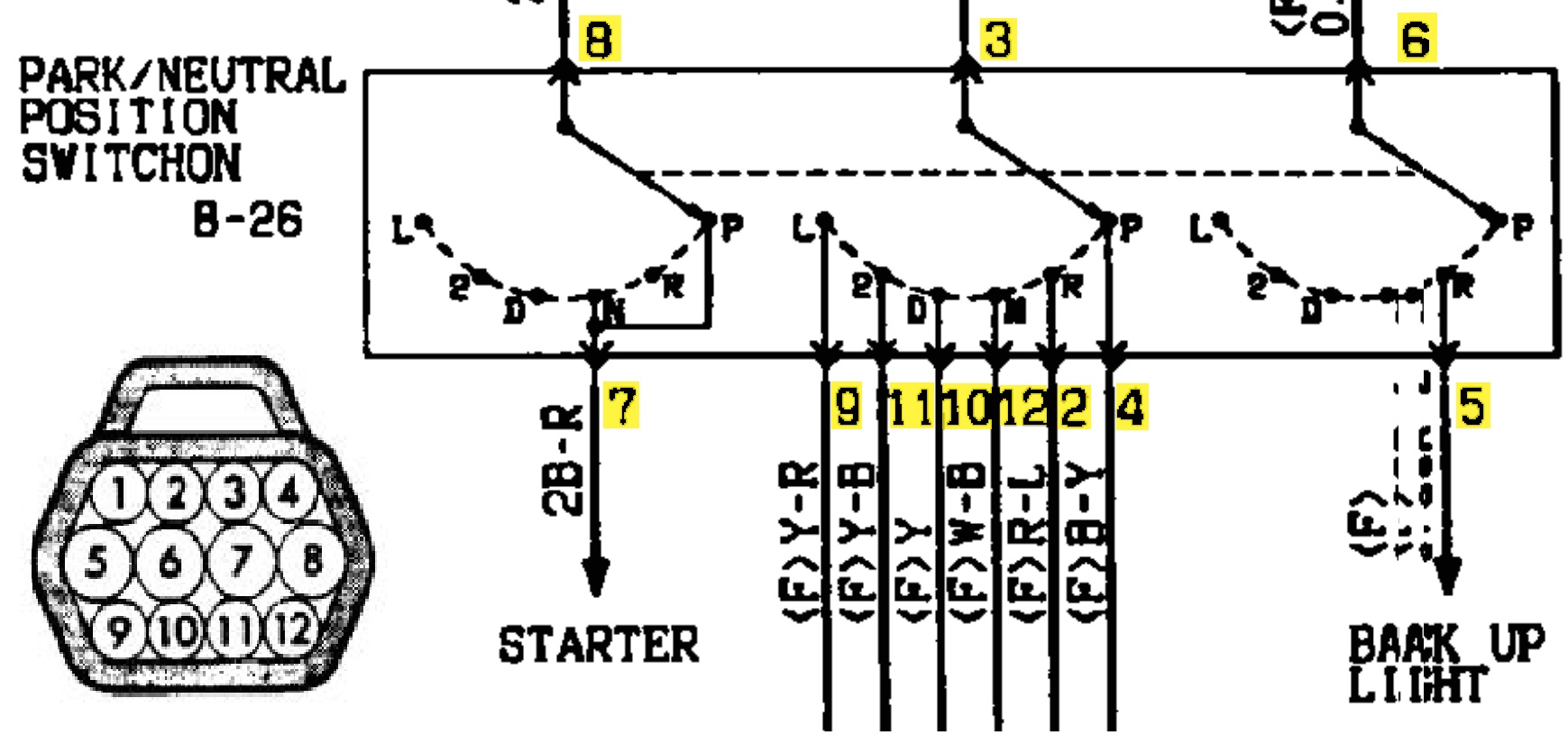

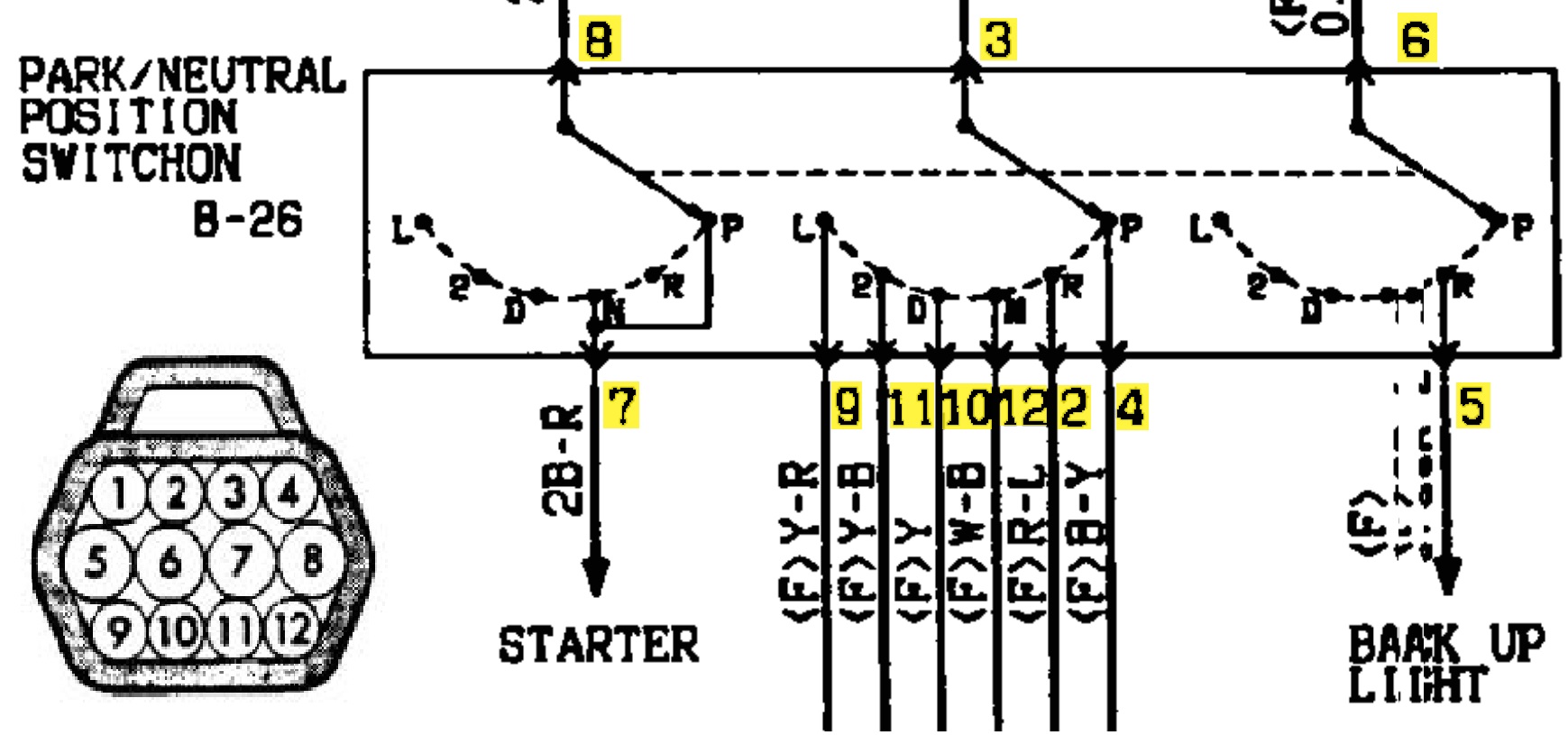

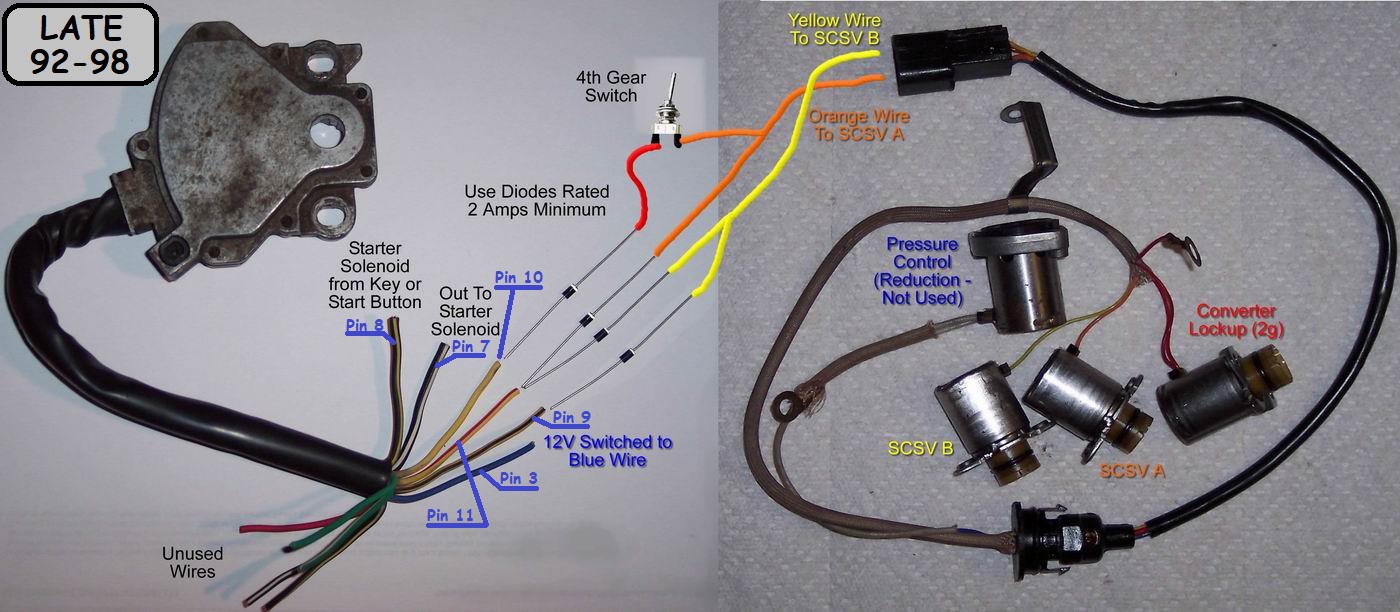

Here are the wires needed to setup a ratchet shifter. Pins 2, 4, and 12 are completely unused here. Pins 8 and 7 are for Park/Neutral safety switch when starting. You can choose to not use these at your own risk but the car will start in any shifter position. Pins 6 and 5 are for reverse light operation. There is a blue wire in the Solenoid harness. This wire is completely unused and is not to confused with the blue wire from the shift selector that gets a Switched 12v source. On 2Gs, there is also a red wire in the solenoid harness and it is the Converter Lockup solenoid. In most scenarios this is also unused unless you want to retain lockup along with always having a stock 2G converter. This is also at your own risk.


Late Shift Selector Harness
Wire Color What it goes to
Blue 12v Positive from the ignition switch(Pin 3)
Yellow w/ Red Stripe 1st Gear Position(Pin 9)
Yellow w/ Black Stripe 2nd Gear Position(Pin 11)
Yellow 3rd Gear Position(Pin 10)
Black w/ White Stripe Neutral Safety switch so it only starts in P and N(Pins 8 & 7)


Solenoid Harness
Wire Color What it goes to
Orange SCSV Solenoid A(Pin 3)
Yellow SCSV Solenoid B(Pin 4)

w4a33.com_images_bluewiremodlate.jpg2)
